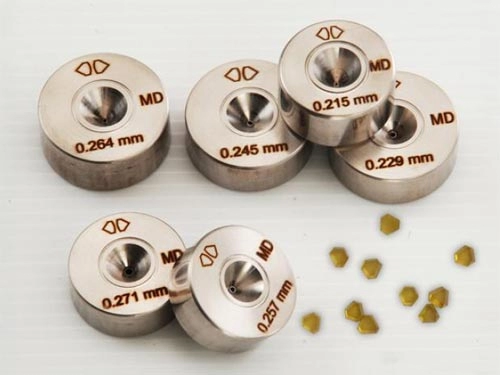

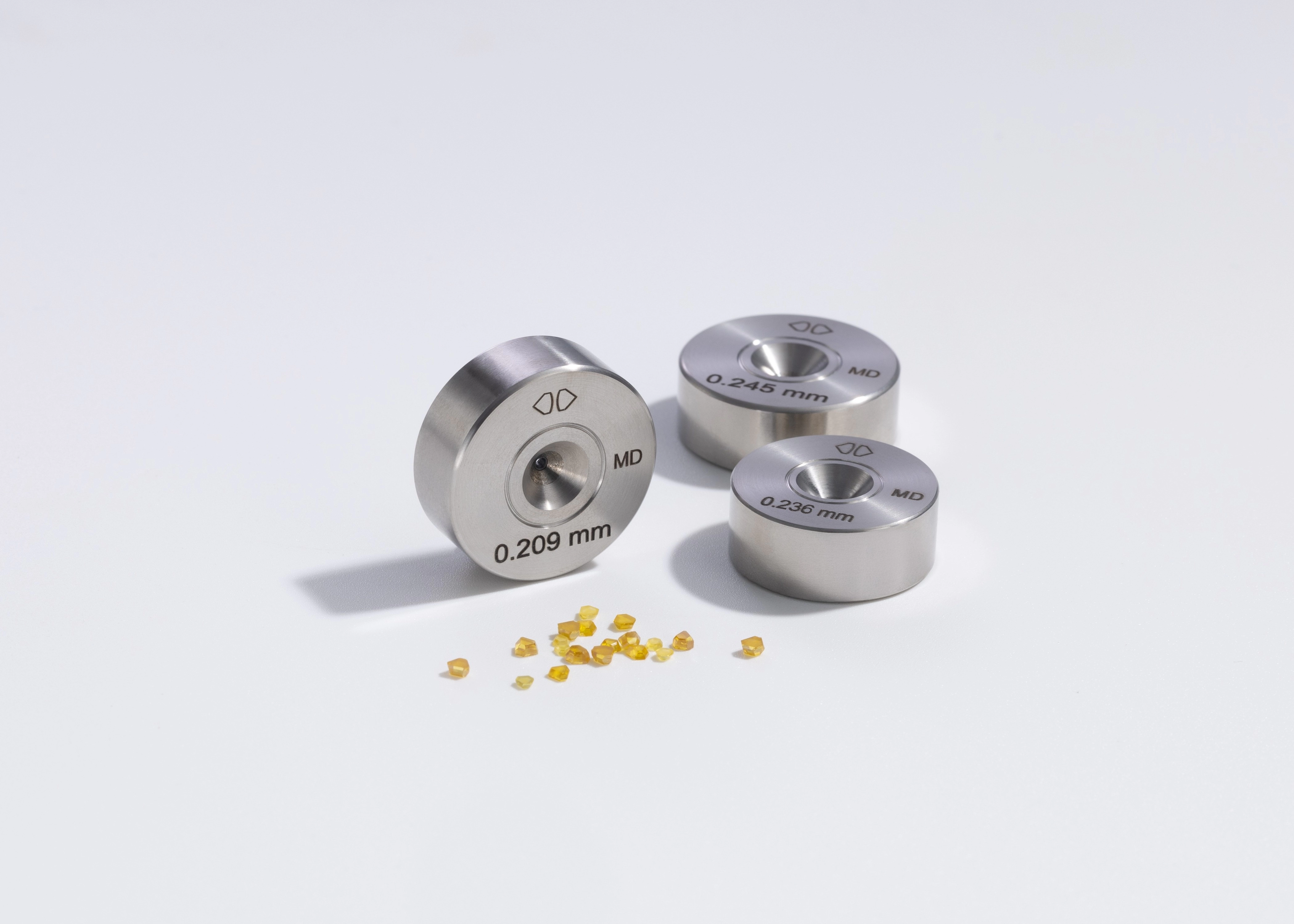

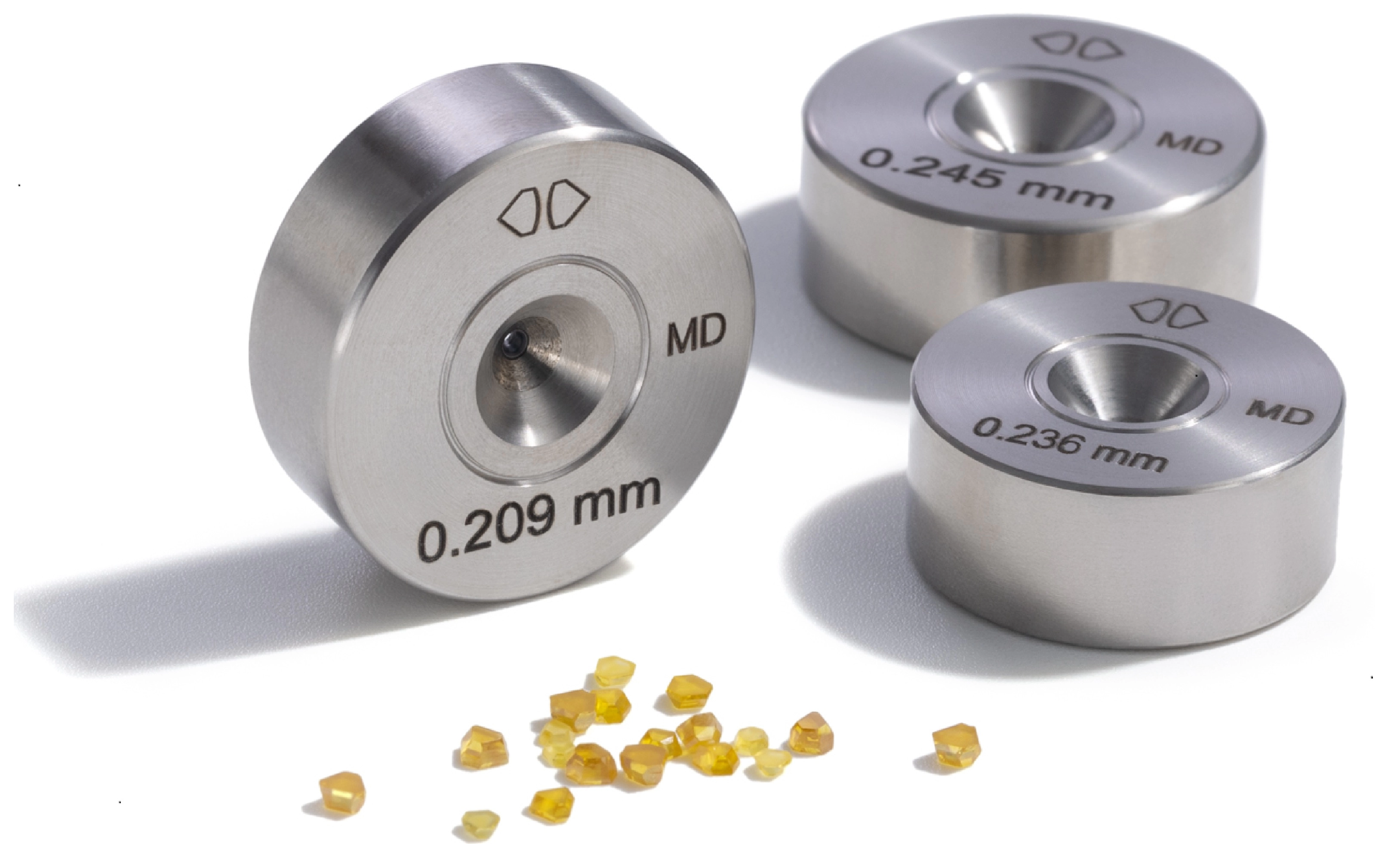

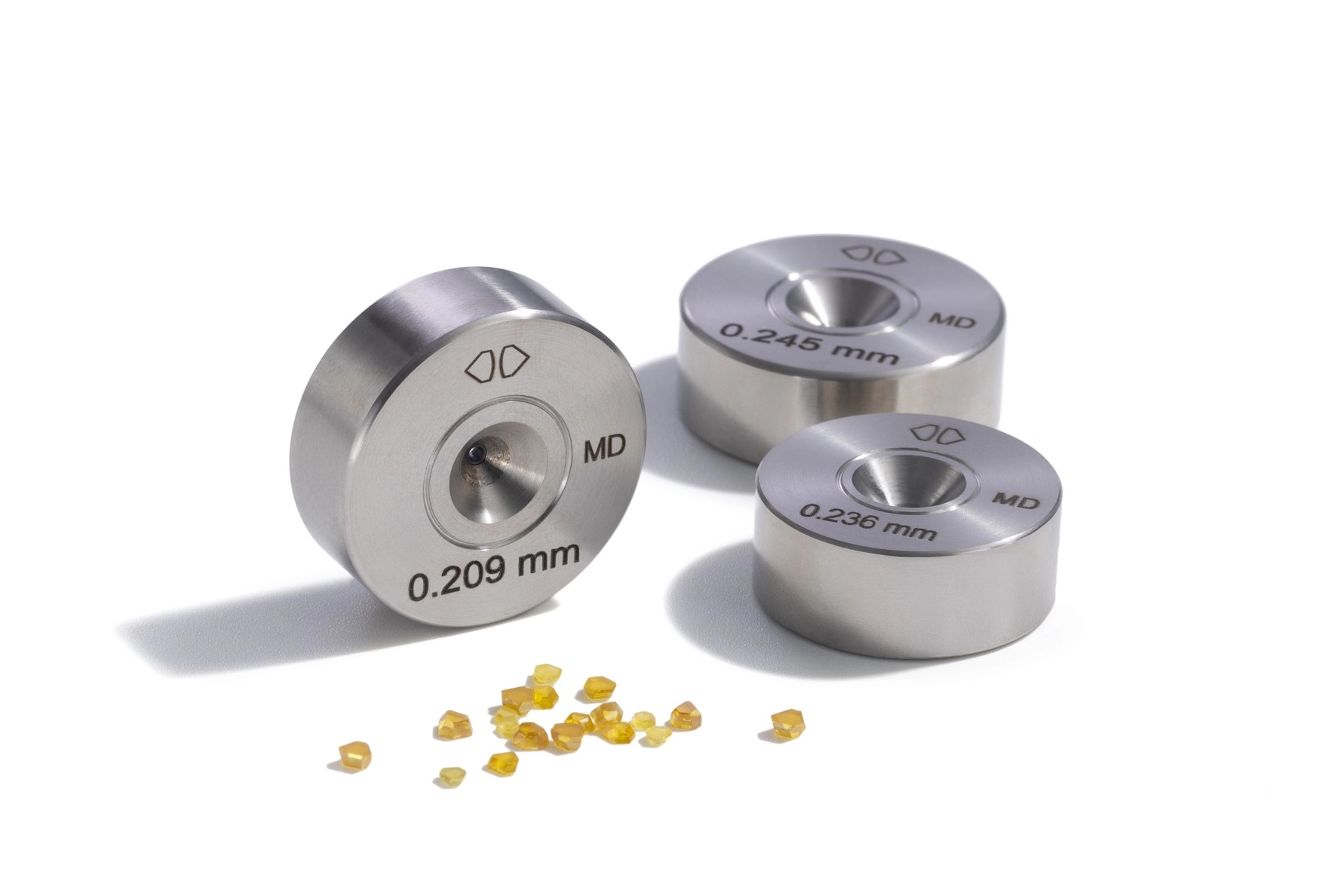

MD(SSCD) Wire Drawing Dies
Synthetic diamond dies are primarily categorized into Monocrystalline Diamond (SSCD) and Polycrystalline Diamond (PCD) types. Both offer exceptional hardness and wear resistance but differ in their structure and performance. Monocrystalline Diamond (SSCD) dies are made from a single synthetic crystal, offering superior surface finish, precise dimensional control, and excellent thermal conductivity, ideal for fine and medium wire drawing. SSCD dies are commonly used for drawing non-ferrous wires such as copper, aluminum, gold, and silver.
Weilly Diamond – SSCD Dies for Lasting Precision & Performance
At Weilly Diamond, we specialize in MD / SSCD dies designed for critical applications requiring tight tolerances, mirror-finish surfaces, and consistent performance in high-speed drawing operations. Our dies support various wire sizes and are widely used for bonding wires, medical-grade wires, and precious metal applications.
Our deep expertise, strict quality control, and advanced polishing techniques ensure reliable die life and repeatable performance, helping you reduce costs and improve productivity.
| Size Range | Standard Tolerance | Minimum Tolerance |
Standard Casing D x H |
||
| <0.040 | +0-0.0005 | +0-0.0004 | Ø25 or 28 x 6 | ||
| 0.040~0.059 | +0-0.0008 | +0-0.0005 | Ø25 or 28 x 8 | ||
| 0.060~0.099 | +0-0.001 | +0-0.0005 | Ø25 or 28 x 8 | ||
| 0.100~0.399 | +0-0.0015 | +0-0.001 | Ø25 or 28 x 8 | ||
| 0.400~0.799 | +0-0.002 | +0-0.001 | Ø25 or 28 x 10 | ||
| 0.800~2.500 | +0-0.003 | +0-0.002 | Ø25 or 28 x 12 | ||
Features
◆ Made from Monodie MD111 blank from Element Six, Ireland.
◆ Acuurate 111 orientation.
◆ High thermal stability and conductivity.
◆ Longtool life over ND dies for 30%.
◆ Size available from 0.015mm to 1.5mm.
Common Applications
◆Fine Copper & aluminum wires for electronics.
◆Medical wires requiring tight tolerances & clean finishes.
◆Stainless steel & specialty alloy wires.
◆Precious & ferrous & non-ferrous metal wires with minimal deformation.
