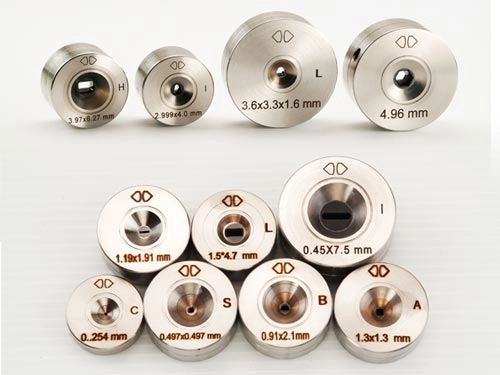

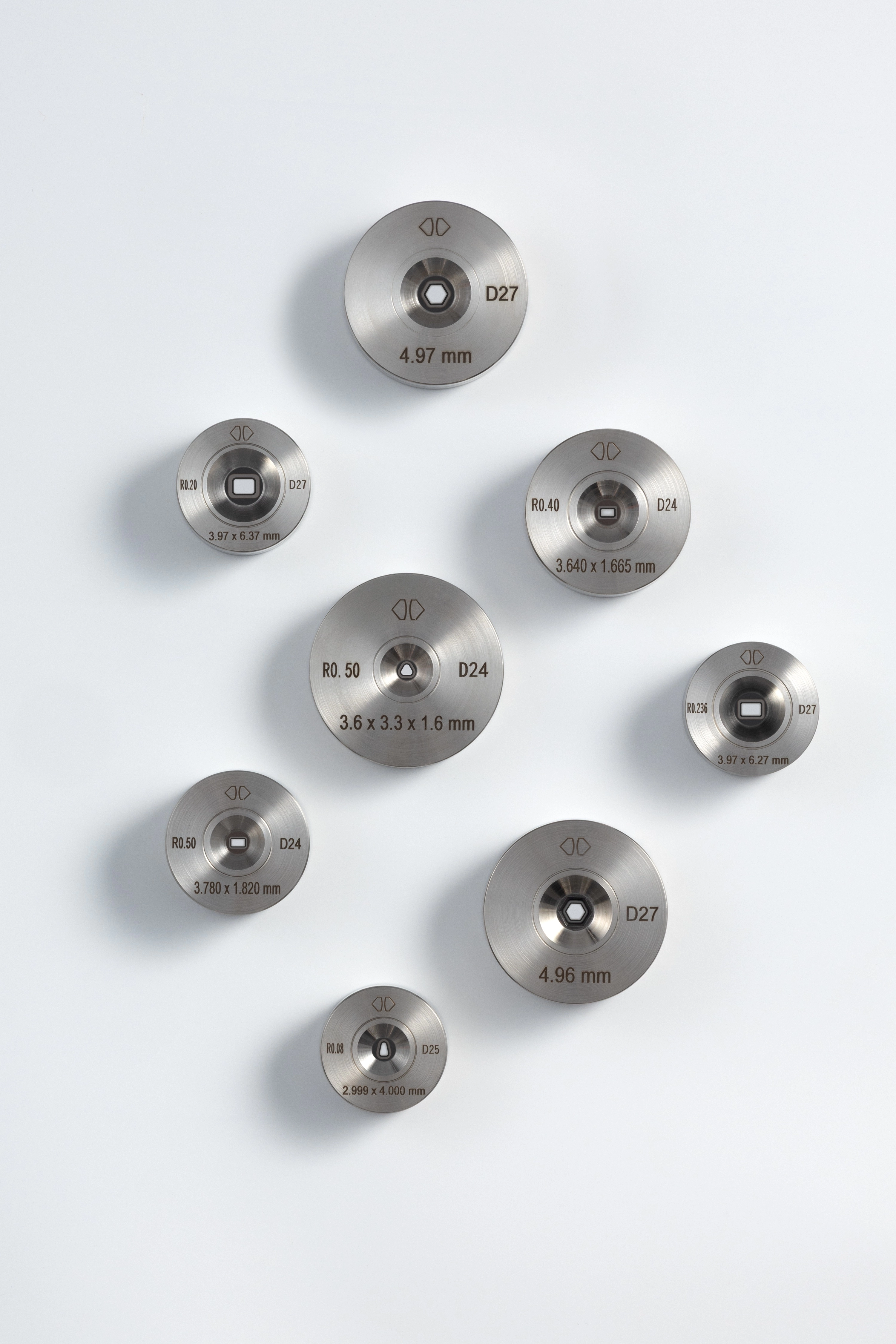

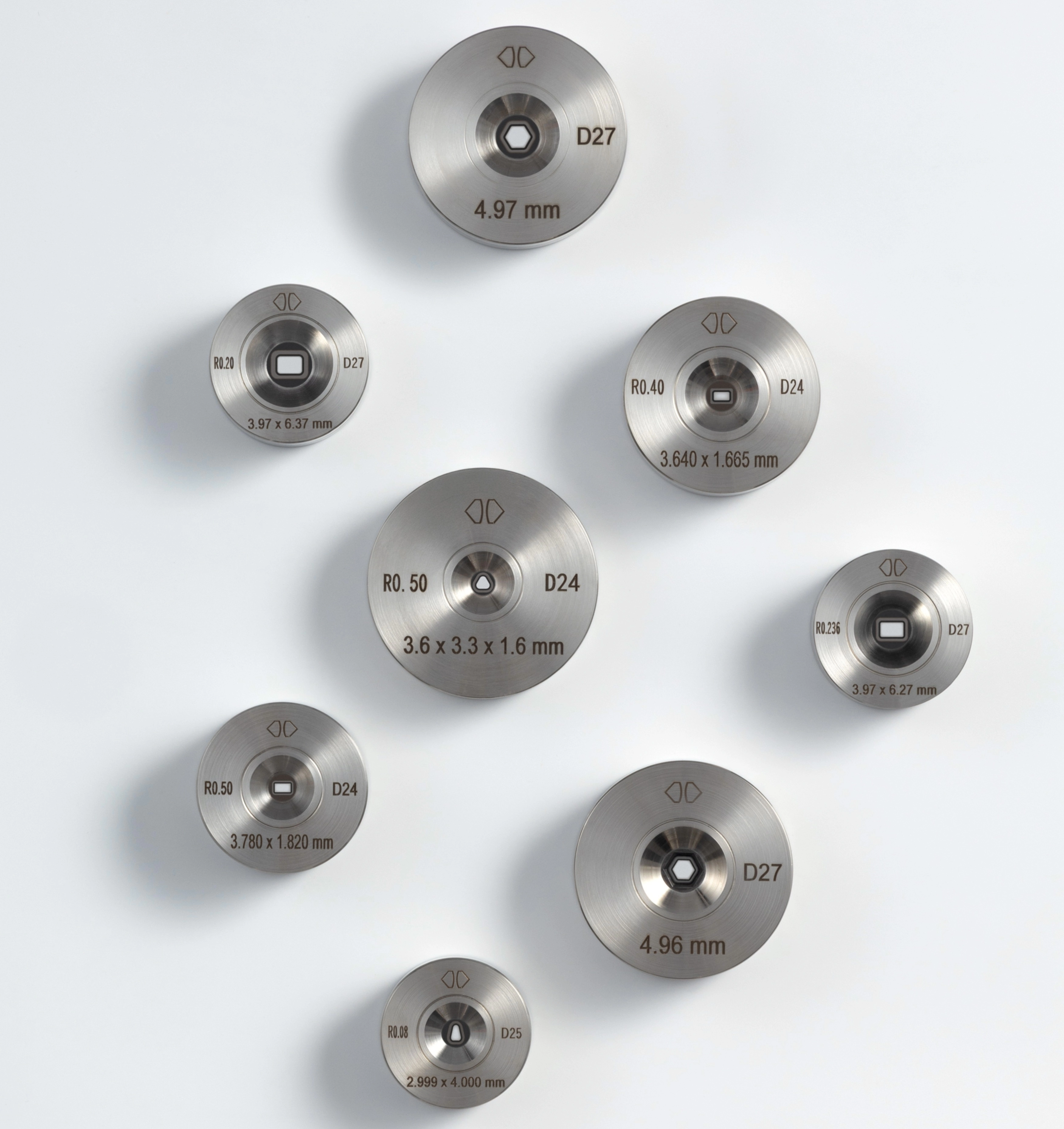

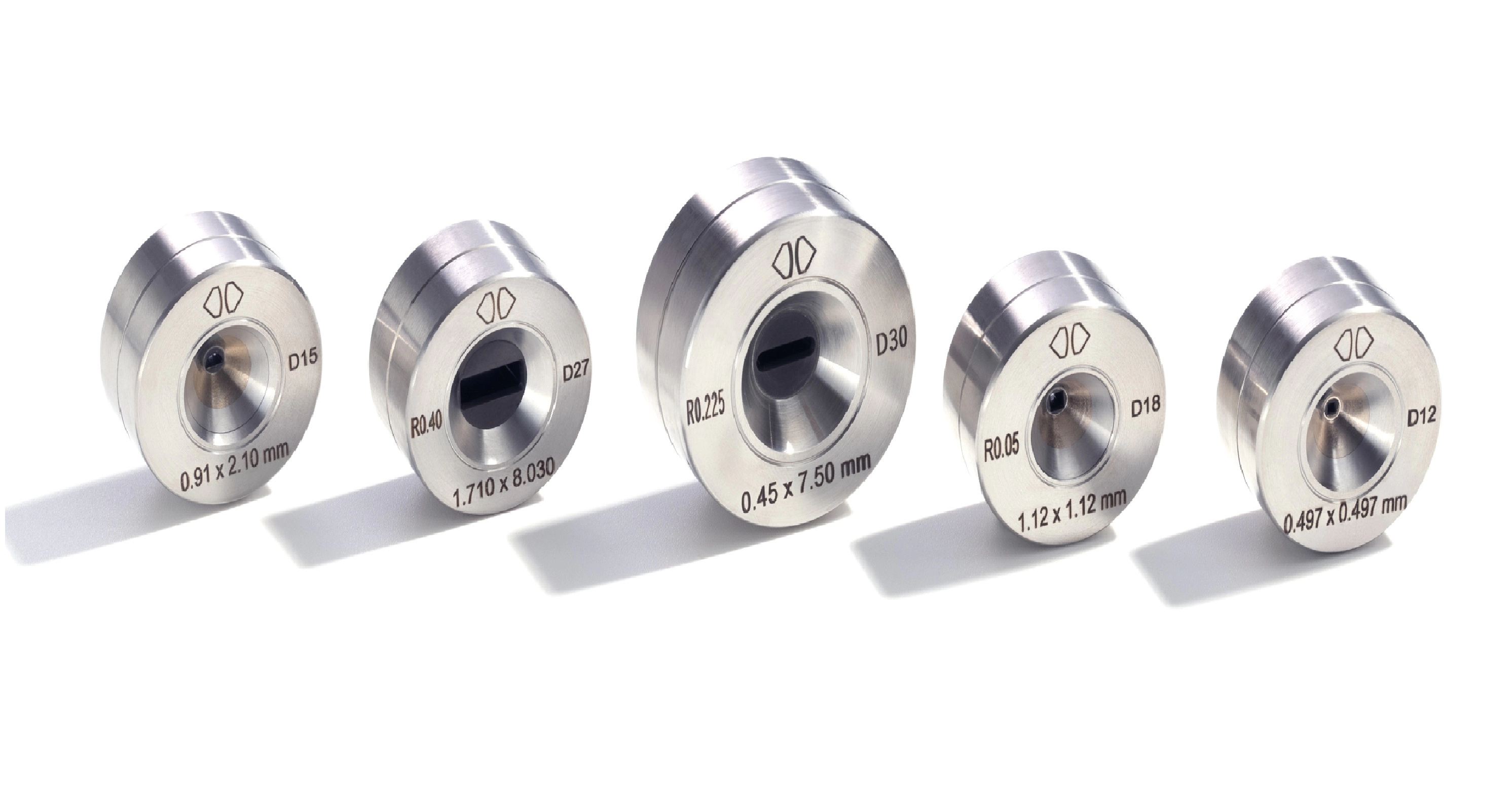

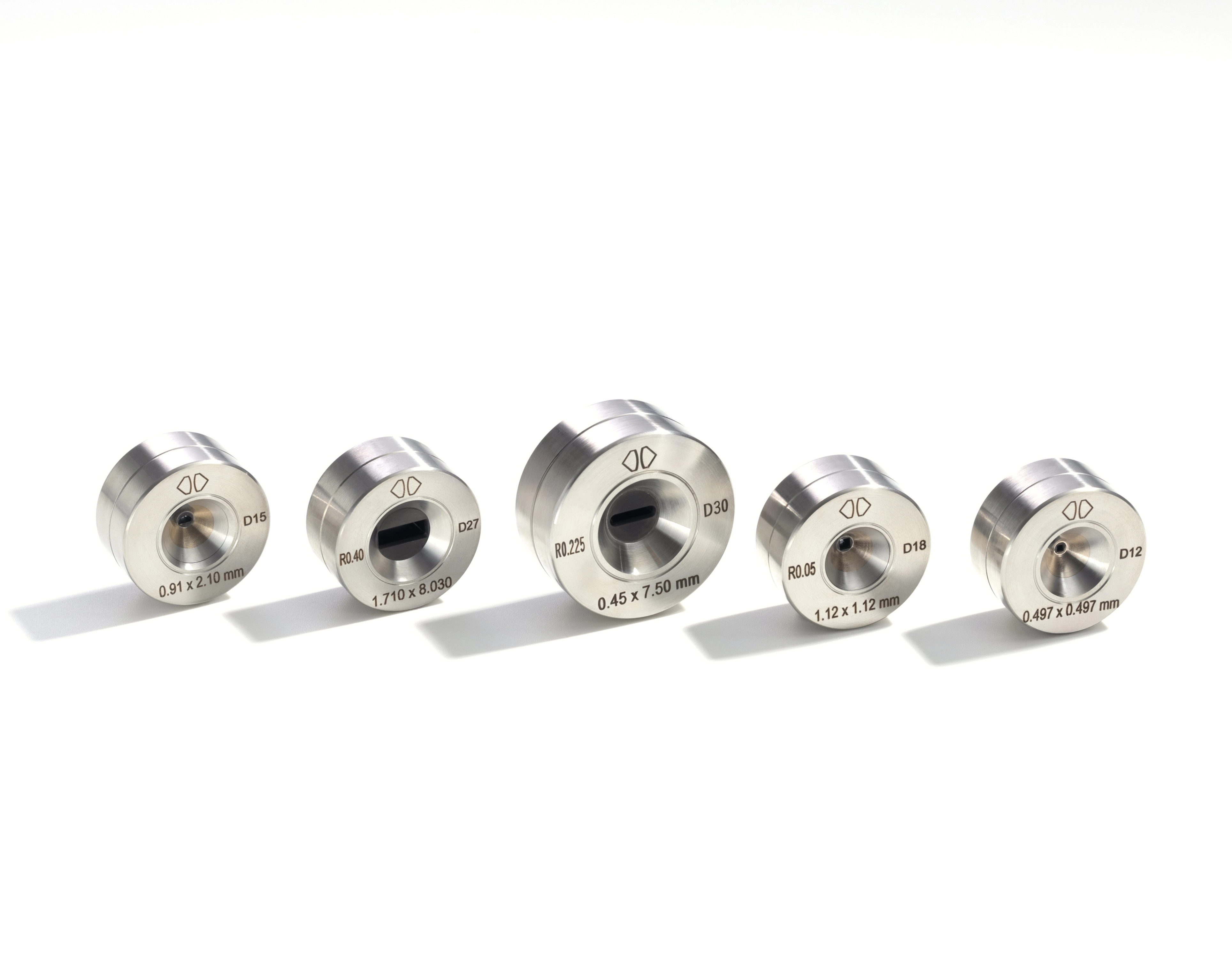

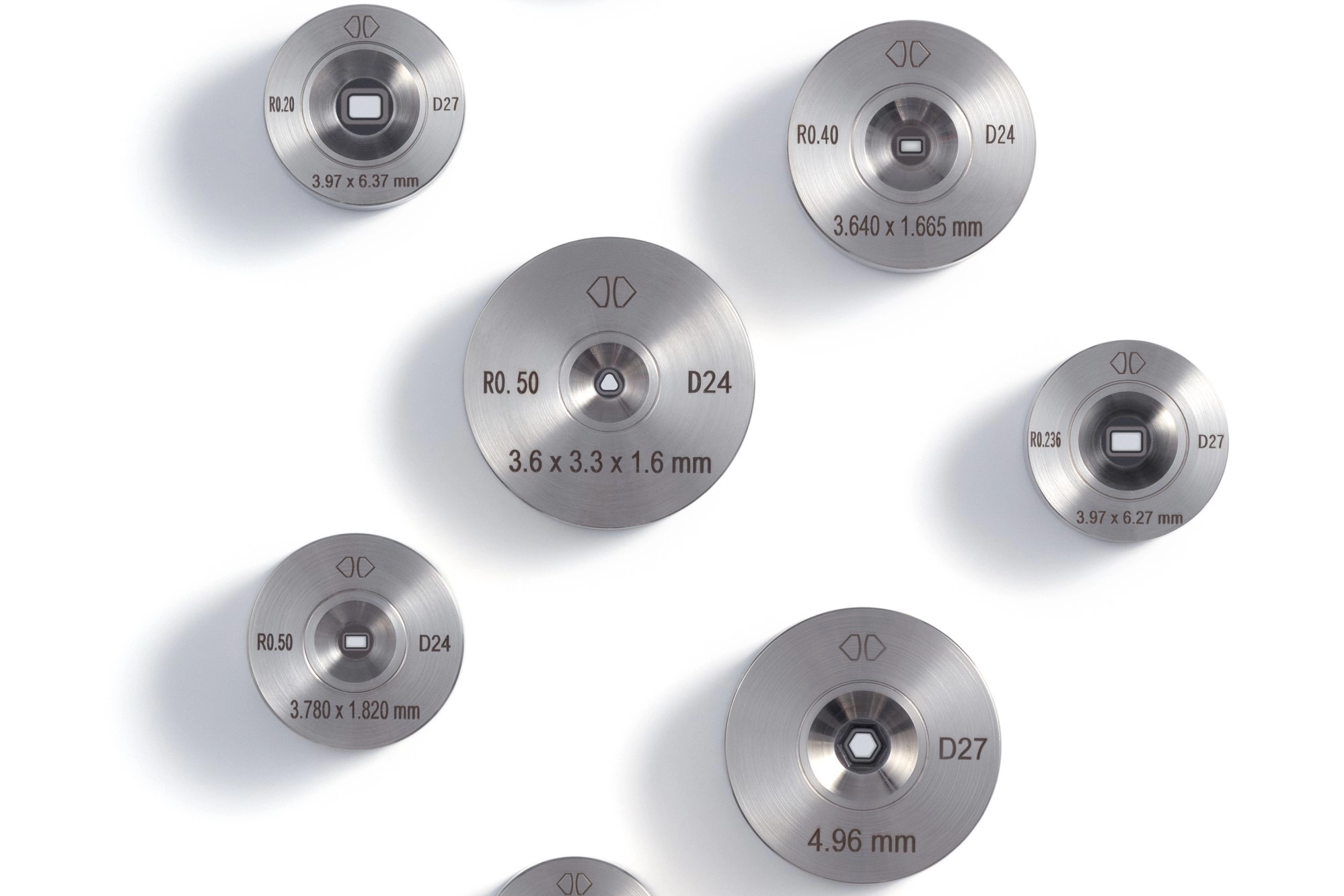

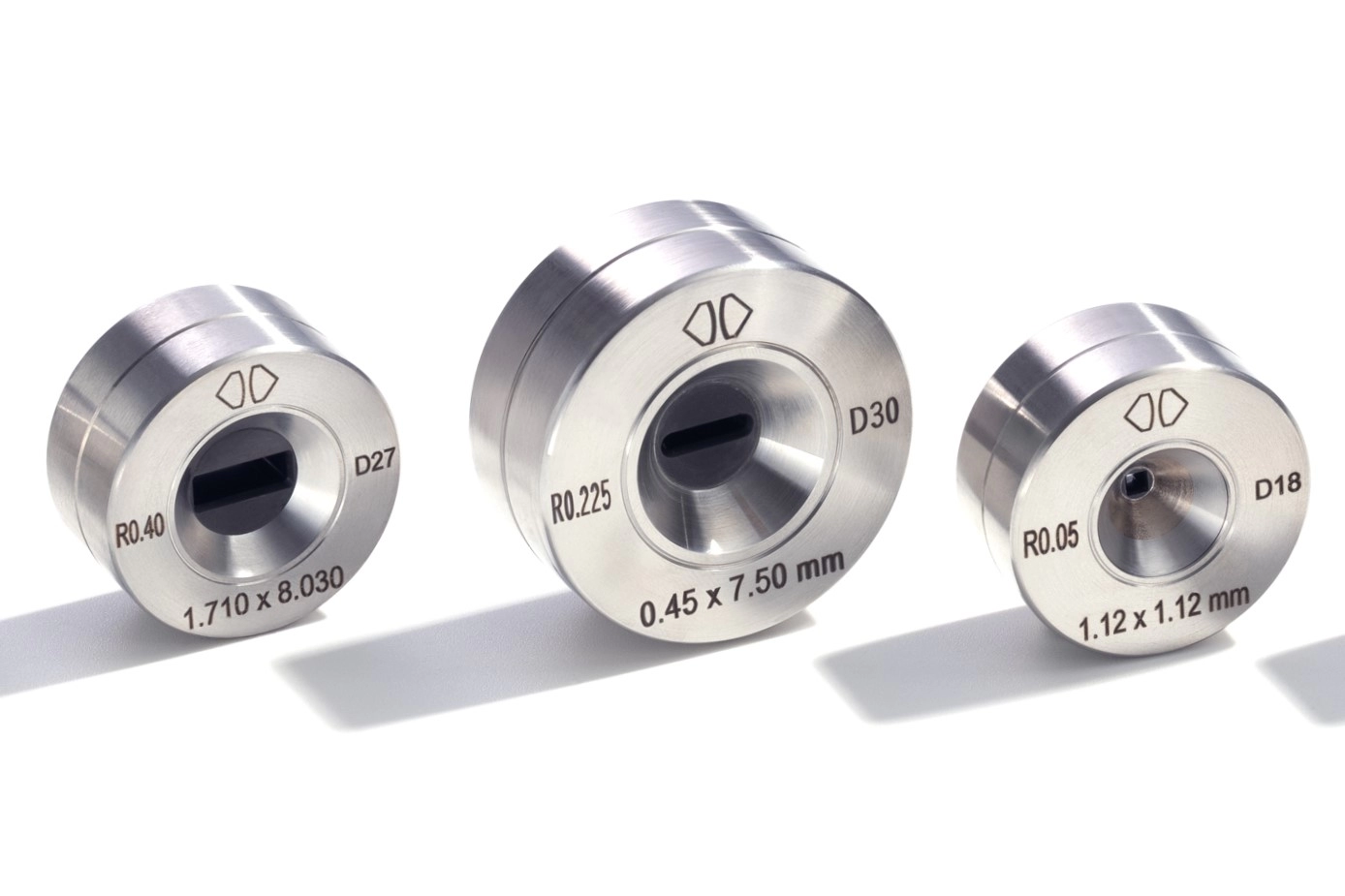

PCD Shaped Dies
Weilly Diamond – Specialist in PCD Shaped Dies for Complex Wire Drawing
Weilly Diamond is a trusted manufacturer of custom PCD shaped dies, leveraging in-house expertise in design, profiling, and polishing. Our dies are tailored to customer specifications, supporting intricate geometries with tight tolerances and extended tool life.
We serve global clients across electrical, automotive, and aerospace sectors looking for high-efficiency solutions for non-round wire drawing.
*The applicable range is as the table below.
|
PCD Shaped Dies |
Dimension |
Applicable range |
|
|
Min.(mm) |
Max.(mm) |
||
|

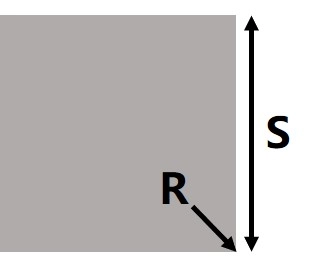

Square
|
S |
0.1 |
15 |
|
D |
|
|
|
|
R |
0.02 |
5 |
|
|

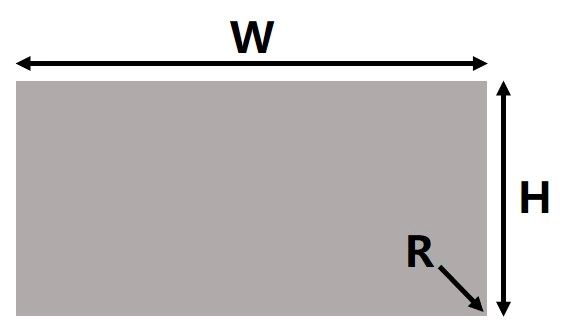

Rectangle
|
W |
0.4 |
15 |
|
H |
0.06 |
10 |
|
|
R |
0.02 |
|
|
|
W/H |
|
≦12 |
|
|

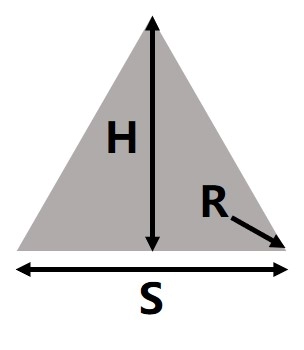

Triangle
|
S |
0.5 |
10 |
|
H |
0.5 |
10 |
|
|
R |
0.06 |
2 |
|
|

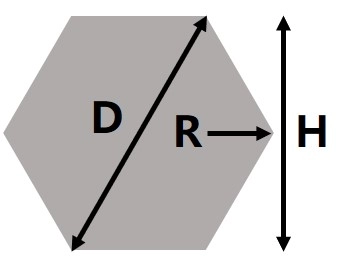

Hexagonal
|
H |
0.4 |
20 |
|
R |
0.05 |
|
|
|
D |
0.5 |
23 |
|
※When you inquire shaped dies, please be sure to inform us of the incoming wire dimension and Material to be drawn.
Features
◆ Common shapes are square, rectangle, flat, hexagonal, triangle, oval.
◆ Special shapes on demand like trapezoid, flower, or any irregular shapes.
◆ Made with high-quality polycrystalline diamond for extended tool life.
◆ Customizable die angles and casing sizes.
◆ Excellent dimensional stability and surface finish.
Common Applications
◆ Shaped Copper and Aluminum wires for motors and transformers.
◆ Flatand ribbon wires for electronics.
◆ Structural wire for aerospace and automotive components.
◆ High-performance profile wire drawing in industrial application.
