What Are Diamond Dies? The Essential Tool Behind Precision Wire Drawing
If you've ever held an electrical cable, used a smartphone charger, or driven a car, you’ve benefited from the work of a diamond die—whether you realized it or not,diamond dies are small but powerful tools used in wire drawing, the process of reducing a wire's diameter while improving its surface finish.
These dies, made with natural or synthetic diamond, are the unsung heroes of manufacturing, enabling precision, durability, and efficiency across industries like automotive, aerospace, communication, construction, energy, and medical. In this guide, we'll explore what diamond dies are, their types, applications, and why they matter in modern manufacturing.

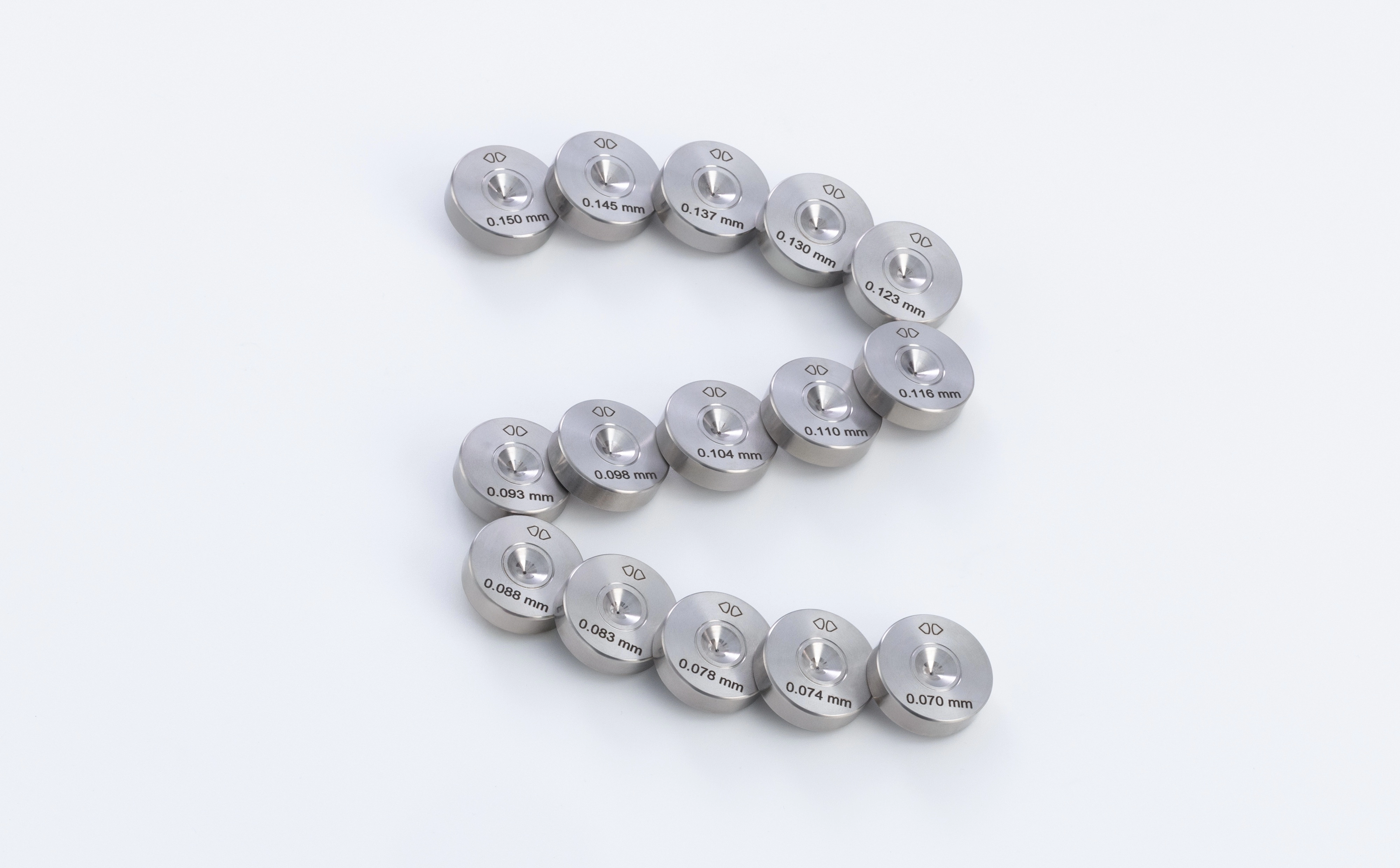

1. What Is a Diamond Die?
Diamond offers unmatched:
◆Wear resistance— significantly longer tool life.
◆Thermal stability— handles high-speed drawing without distortion.
◆Accuracy— ensures consistent, defect-free wires.
In a typical wire drawing setup, the wire passes through a tapered hole in the die, gradually reducing its size to the desired measurement.
2. Types of Diamond dies
◆Made from naturally mined diamonds.
◆Provide exceptional hardness and mirror-like surface finishes.
◆Perfect for ultra-fine wire drawing, such as medical wires or microelectronics.
Monocrystalline Diamond (MCD/SSCD) Dies
◆Made from synthetic single-crystal diamonds.
◆Offer excellent thermal stability and extended lifespan.
◆Ideal for high-speed production where precision is critical.
Polycrystalline Diamond (PCD) Dies
◆Created by sintering multiple diamond particles together.
◆ Highly tough and impact-resistant, perfect for heavy-duty and large-diameter wire drawing.
◆Cost-effective choice for large-volume production.
3.Industries That Rely on Diamond Dies
A. Automotive
Battery cables, safety system wiring, and enameled wires.
B. Aerospace
High-precision wiring for signal transmission and controls.
C. Communications
Ethernet cables, HDMI cables, fiber optic cores.
D. Construction
Steel wire ropes, structural mesh wires.
E. Energy
High-voltage power cables, transmission lines.
F. Medical
Guidewires, needle tubes, and catheter components.
4. Why Quality Diamond Dies Matter
The performance of a diamond die impact:
◆Surface quality— smoother wire, fewer defects.
◆Production efficiency— faster output, fewer stoppages.
◆Cost savings— longer lifespan reduces replacement costs.
Using low-quality dies can lead to wire breakage, reduced output, and inconsistent quality—problems that slow production and increase expenses
5. Conclusion
Diamond dies may be small, but they are critical to the success of wire manufacturing. By ensuring precision, durability, and efficiency, they help industries deliver reliable, high-quality products at scale.
Ready to take your wire drawing to the next level?
The right diamond die can dramatically improve your production efficiency, extend tool life, and deliver exceptional wire quality. Our experts at Weilly Diamond are here to recommend the perfect die for your specific application—whether for fine wire, shaped profiles, or high-speed production.
